IB-Lenhardt AG has been supporting OEMs of vehicle radars in the worldwide type approval of their devices for many years. Our experts will also find customized solutions for you.

Overview

Vehicle Radar Sensors

Radar sensors in modern vehicles contribute significantly to increasing driving safety and provide valuable support to the driver. IBL-Lab GmbH, a wholly owned subsidiary of IB-Lenhardt AG, lays the foundation for the required metrological proof of conformity of the various radar sensors with the DAkkS-accredited laboratory for electrical safety, EMC testing and regulatory radio testing. A first important step for your type approval.

In addition, IBL-Lab GmbH has partnered with Rohde & Schwarz to build a radar laboratory that exceeds current regulatory requirements for radar sensor performance and quality indicators, such as noise immunity, multi-target capability, accurate sensor positioning, and calibration of the sensor's emitted transmission power.

With the progress in autonomous driving, the number of radar sensors needed in a vehicle is increasing:

  • SRR - short-range radar, up to about 30 meters: At close range, radar sensors are used to monitor blind spots and support stop-and-go functionality,

  • MRR - Mid-Range Radar, up to approx. 150 meters: Radar sensors with cross-traffic alert and lane change assistance,

  • LRR - Long-Range Radar, up to approx. 250 meters: Radar sensors for automatic speed control and lane change assistance.

Learn more about the current regulatory measurements on this page and furthermore more about our performance tests.

Request a quote
Video

3D Imaging Radar in the 78 GHz Range

When developing cutting-edge technologies such as 78 GHz automotive radar, ensuring performance and accuracy across the entire operating range is paramount. Our radio lab engineer goes through everything that is important for testing 3D radars in the lab.
Find out more in this video (English subtitles) and contact us for more information.

IB-Lenhardt AG is one of the leading test houses for automotive radar certification and a great partner for improving the testing on the way towards autonomous driving.

Holger Gryska
Holger Gryska
Market Segment Automotive Radar, Rohde & Schwarz International GmbH

Automotive Radar Market Forecast

Continuous development of new safety and convenience features is leading to a sharp rise in the automotive radar market. The automotive industry is the fastest growing segment of the overall radar market and is expected to exceed USD 10 billion by 2026.

4,138 22,536 Global Automotive Radar Market, 2022-2030 (USD Million) 2022 2023 2024 2025 2026 2027 2028 2029 2030 21.1% Compound Annual Growth Rate (CAGR) Source: Acumen Research and Consulting
ECE Mark of Conformity

Accreditations

Notified Body for ECE-R-10 Type Approval

As an accredited laboratory according to DIN EN ISO/IEC 17025:2018, IBL-Lab GmbH has been designated by the KBA (Kraftfahrt-Bundesamt - German Federal Motor Transport Authority) as a Category A Technical Service for the ECE-R-10 type approval procedure and is thus authorized to perform EMC tests according to the ECE Directive.

We accompany you in all EMC measures of conformity assessment and product validation. These services provide you as a company with efficient, high-performance and high-quality testing services.

Regulatory Compliance Services (EU, USA, Canada)

Our radar test system services includes precise measurements

  • of the operating frequency range,

  • of EIRP (peak, mean),

  • of interference emission (out-of-band, Oberwellen),

  • spectrum masks as well as bandwidth, linearity and pulse duration,

  • of FMCW Radar signals besides receiver-side interference emission and receiver blocking/immunity,

  • of vehicle radar systems in the frequency ranges 24 GHz, 76 GHz and 79 GHz according with:

    • ETSI EN 302 858-2

    • ETSI EN 301 091-2

    • ETSI EN 302 264-1

    • FCC part 15, FCC part 95 (subpart M)

    • RSS 251

Performance Testing

Our test service comprise precise measurements and validation on the following:

Characterization of automotive radomes (measurement of TX power and EIRP with a power sensor)

Measurement of the detection behavior of vehicle radars under adverse interference signals

Interference immunity of receiver / receiver signals handling

Undesired emissions in the out-of-band range and caused by harmonics and receivers

Calibration of TX power emitted by the radar sensor

Services

Applications for the Automotive Industry

Assistance Systems (ADAS)

Vehicle radar systems in frequency ranges of 77 and 79 GHz, such as distance and blind spot radars, parking and lane assist systems

Telematic

Kick sensors, tire pressure sensors, radio remote control, keyless entry/go, Ultra-Wideband (UWB), 60 GHz in-cabin radar monitoring, garage door openers

Infotainment

Bluetooth hands-free, Apple Carplay/Android Auto, GNSS, C2C (car-to-car communication), wireless charging (Qi)

Certifications

Worldwide Type Approval

With our established processes we guarantee a smooth and fast market access. Our experienced experts support you in the evolution of your product and give you comprehensive advice. Learn more about Certification Bodies.

CE (Europe)

Ready for the European Market

FCC (USA)

Complete the US Type Approval Process

ISED (Canada)

Your way to the Canadian Market

MIC (Japan)

Get your Type Approval for Japan
Know-how

Automotive Radar Test Solutions

Why is IBL-Lab GmbH ideally suited to have your product tested and certified for market approval? In this video, CEO Daniel Lenhardt (IB-Lenhardt AG), CEO Dr. Harald Ansorge (IBL-Lab GmbH) and Market Segment Manager Holger Gryska (R&S) give you the answer to that question. See for yourself that you are in the best hands at IB-Lenhardt AG.

Radar Types

ITU Classification

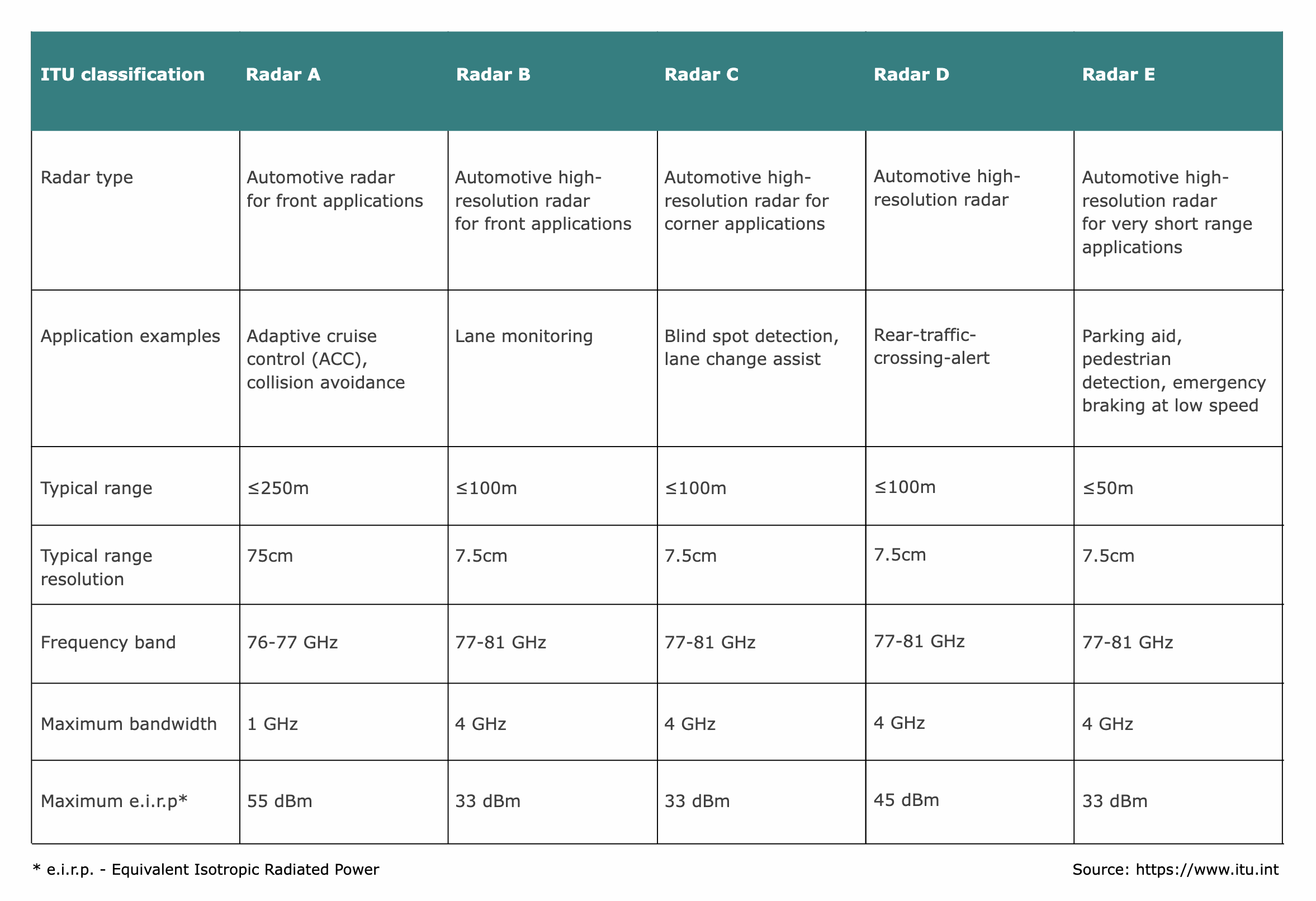

Source: https://www.itu.int * e.i.r.p. - Equivalent Isotropic Radiated Power Automotive high- resolution radar for front applications Automotive high- resolution radar for very short range applications Automotive high- resolution radar for corner applications Automotive high- resolution radar Automotive radar for front applications ≤250m ≤100m ≤100m ≤100m ≤50m 75cm 7.5cm 7.5cm 7.5cm 7.5cm 76-77 GHz 77-81 GHz 77-81 GHz 77-81 GHz 77-81 GHz 1 GHz 4 GHz 4 GHz 4 GHz 4 GHz 55 dBm 33 dBm 33 dBm 45 dBm 33 dBm Parking aid, pedestrian detection, emergency braking at low speed Blind spot detection, lane change assist Lane monitoring Adaptive cruise control (ACC), collision avoidance Rear-traffic- crossing-alert Application examples Radar type Typical range resolution Frequency band Maximum bandwidth Maximum e.i.r.p* Typical range ITU classification Radar A Radar B Radar C Radar D Radar E

Image file (PNG)

Vehicle Radar Scope

Frequencies and Standards

In our accredited test laboratory we perform tests according to the following standards for the frequency ranges mentioned:

Europe

24.00 - 24.25 GHz ETSI EN 300 440
100 mW e.i.r.p.*
57 - 64 GHz ETSI EN 305 550
20 dBm e.i.r.p.*
76 - 77 GHz ETSI EN 301 091
55 dBm peak e.i.r.p.*
77 - 81 GHz ETSI EN 302 264
55 dBm peak e.i.r.p.*
122 - 123 GHz ETSI EN 305 550
20 dBm e.i.r.p.*

USA

24.00 - 24.25 GHz FCC Part 15.249
250mV/m@3m
24.075 - 24.175 GHz FCC Part 15.245
2500mV/m@3m
57 - 71 GHz FCC Part 15.255
Bandwidth and application specific
76 - 81 GHz FCC Part 95 M
55 dBm peak e.i.r.p.*
50 dBm mean e.i.r.p.*
116 - 123 GHz FCC Part 15.258
53 dBm peak e.i.r.p.* / Bandwidth-specific

Canada

24.00 - 24.25 GHz RSS-210 B.10
250mV/m@3m
24.075 - 24.175 GHz RSS-210 F
2500mV/m@3m
57 - 71 GHz RSS-210 J
Bandwidth and application specific
76 - 81 GHz RSS-251
55 dBm peak

Japan

24.05 - 24.25 GHz TELEC-T308
0.02W conducted
76 - 77 GHz ARIB STD-/48
TELEC-T306
0.01 W conducted
77 - 81 GHz ARIB STD-T111
TELEC-T319
0.01 W conducted

* e.i.r.p. - Equivalent Isotropic Radiated Power
