MU-MIMO

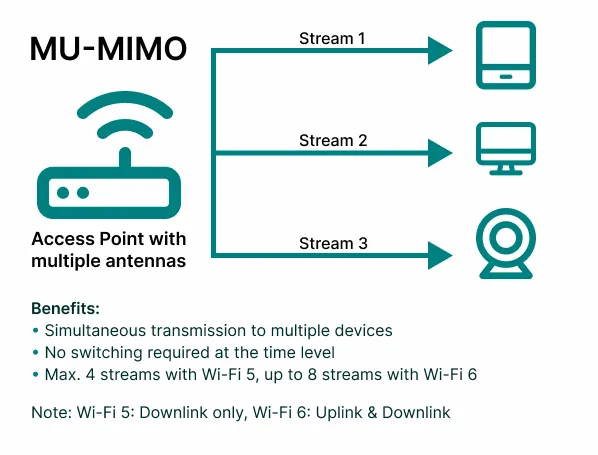

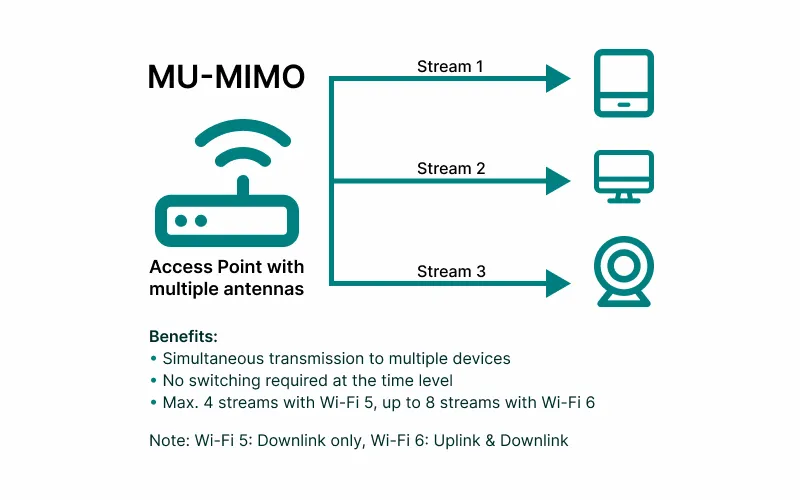

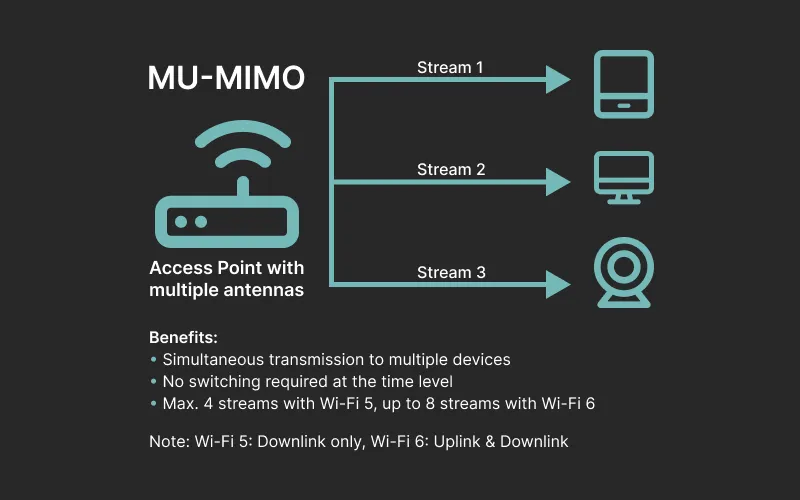

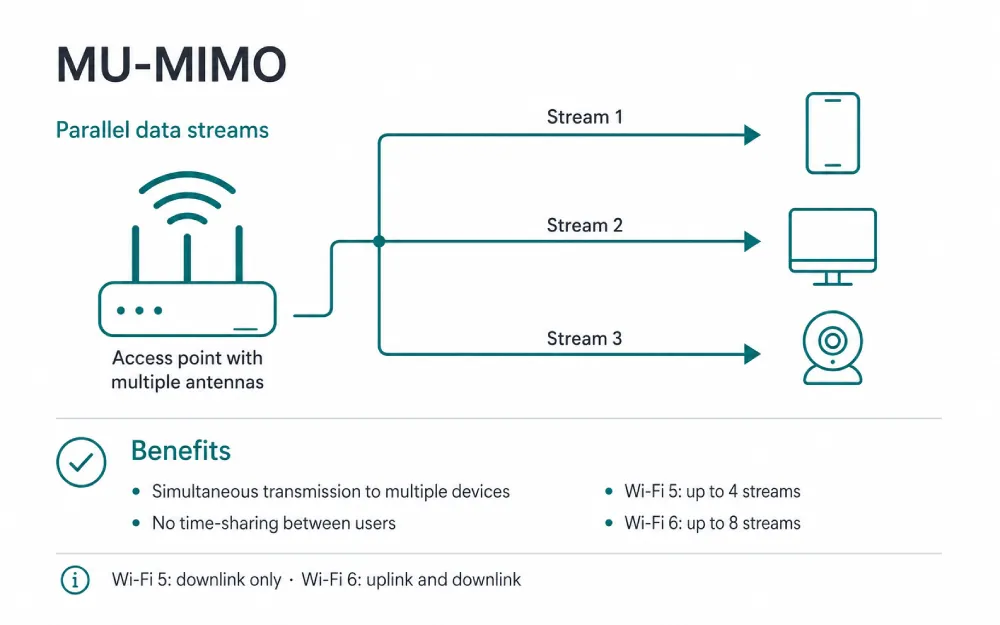

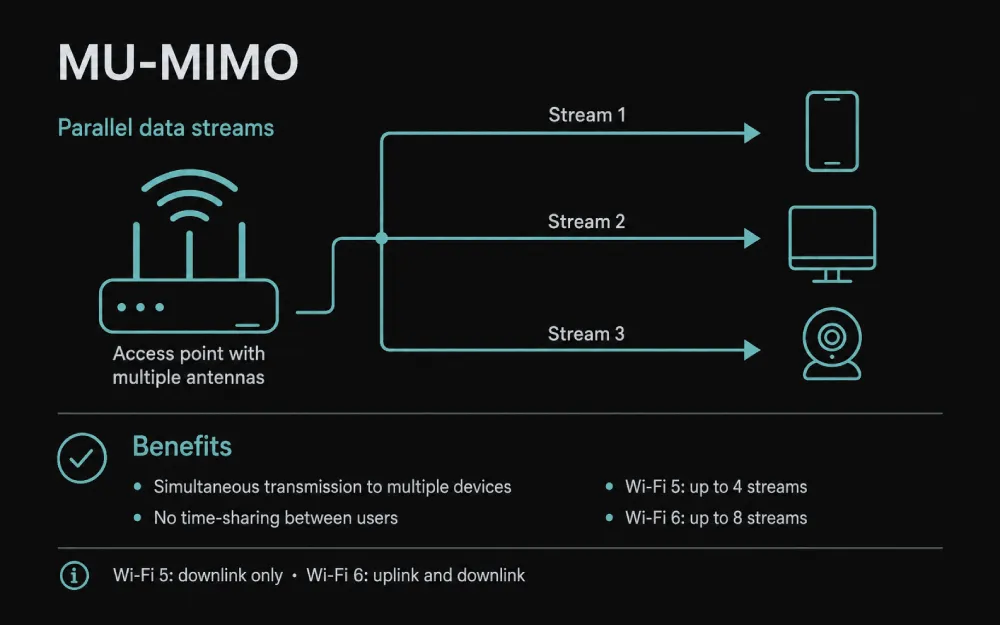

MU-MIMO (Multi-User Multiple Input Multiple Output) is a wireless communication technology that allows a Wi-Fi access point to transmit data to multiple devices simultaneously. Unlike SU-MIMO (Single-User MIMO), which serves only one device per transmission interval, MU-MIMO supports concurrent data streams to several clients—without relying on time-sharing.

Scope and Application

MU-MIMO was introduced with Wi-Fi 5 (IEEE 802.11ac) for downlink transmissions and expanded in Wi-Fi 6 (IEEE 802.11ax) to support both uplink and downlink communication. The feature improves spectral efficiency and increases user capacity in environments with many active connections.

Typical use cases:

• Residential networks with multiple streaming or gaming devices

• Office and education environments with dense device populations

• Industrial or enterprise settings with many simultaneous IoT endpoints

Key Technical Characteristics

• Antenna Arrays
  MU-MIMO relies on multiple transmit and receive antennas to create spatial streams, each directed to a specific client.

• Beamforming
  Directional signal processing (beamforming) is used to steer transmissions toward intended recipients, minimizing interference between parallel streams.

• Client Support
  Wi-Fi 5 supports up to 4 concurrent spatial streams to different clients. Wi-Fi 6 extends this to 8 streams under ideal conditions, depending on device and access point capabilities.

Performance Benefits

• Increased total network throughput

• Lower latency in high-density user environments

• Improved channel utilization across multiple users

Regulatory and Certification Context

MU-MIMO is defined in IEEE 802.11ac and 802.11ax and has no direct regulatory impact. It does not affect transmission power or frequency usage but improves utilization within existing regulatory constraints. MU-MIMO is included in the Wi-Fi CERTIFIED ac and Wi-Fi CERTIFIED 6 test programs managed by the Wi-Fi Alliance.
